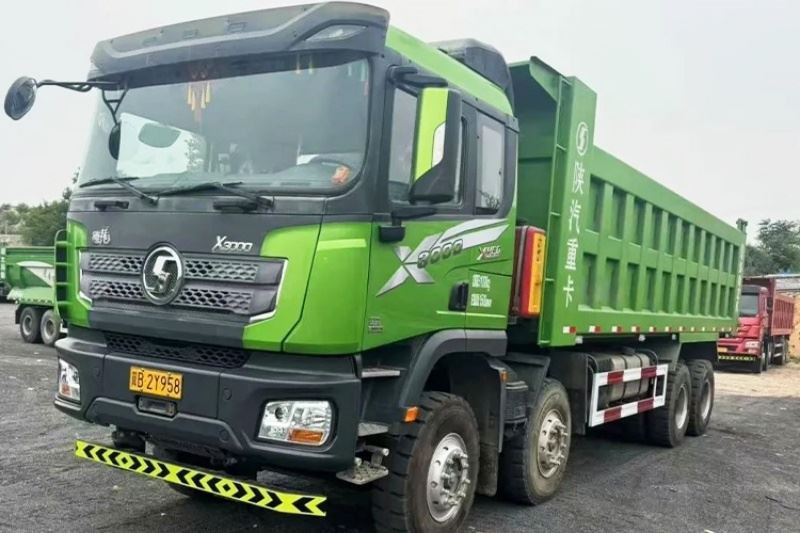

Tus Tshiab Shacman X3000 8x4 Pob Tseg Truck yog lub tsheb hnyav- lub luag haujlwm tsim los thauj cov khoom pov tseg thiab kev sib sau ua ke hauv thaj chaw mining, kev tsim kho vaj tse, thiab cov chaw hauv nroog. Ua los ntawm kev tsom mus rau kev muaj peev xwm thauj khoom siab, ruaj khov, thiab ua haujlwm ntev, nws tuav lub zog muaj zog thiab cov khoom tso tawm tas li txawm tias nyob hauv txoj kev nyuaj thiab tsis tshua muaj kev thauj khoom ib puag ncig. Txawm hais tias rau kev ua haujlwm hnyav lossis ntev - thauj mus los tsis tu ncua, nws muab kev txhawb nqa txhim khu kev qha, ua rau nws muaj kev ntseeg siab loj - lub tsheb thauj khoom loj rau kev thauj mus los engineering.
Khoom Parameters
|
Hom tsav tsheb |
8x4 |
Qauv |
Cstar-TT-Shacman |
|
Tag nrho qhov ntev |
6800x3668x2490 mm |
Log puag |
3775 + 1400 hli |
|
Load hnyav |
31-40 tons |
Qhov ceev tshaj plaws |
90km/h ib |
|
Cav |
|||
|
Cav naj npawb |
Weichai |
Lub tog raj kheej naj npawb |
6 |
|
Hom roj |
Diesel |
Cov pa tawm |
11,596l ua |
|
Emission txheem |
Euro 2.3 |
Lub zog nees |
380 hp zog |
|
Kev sib kis |
|||
|
Tus lej kis tau tus mob |
10 TSI 180 |
Hom kis tau tus mob |
Phau ntawv |
|
Kev txav mus tom ntej |
10x |
Rov qab |
2-ceev |
|
Dump tsheb chassis thiab log tsheb |
|||
|
Pem hauv ntej qag |
tug 9,5t |
Pem hauv ntej qag load |
9 500kg |
|
rear qag |
Txiv neej 16T |
rear qag load |
16 000 kg |
|
Log tsheb |
12.00R20 16 Nws |
Cov log tsheb |
12. Nrog lub log tsheb spare |
Yim-log Tsav Chassis Configuration, Tsim los rau hnyav-lub luag haujlwm thauj Scenarios
• Lub tsheb tau txais 8 × 4 tsav qauv (yeem), nrog lub log ntawm 3775 + 1400 hli thiab tag nrho qhov ntev ntawm 6800 × 3668 × 2490 mm. Nws ruaj khov thiab ruaj khov kev thauj mus los yooj yim tuav cov kev xav tau ntawm 31-40 tons.
• Pem hauv ntej qag siv MAN 9.5T txhawb nqa pem hauv ntej qag nrog ib qho -cov kabmob muaj peev xwm ntawm 9500 kg; lub rear qag yog ib tug txiv neej 16T hnyav- lub luag haujlwm qag nrog tag nrho cov peev txheej ntawm 16000 kg. Qhov system qag muaj zog no muab kev txhawb nqa txaus, ua kom lub tsheb tswj nws tus ncej yam tsis muaj kev sib tw lossis lub zog poob txawm tias nyob rau hauv tag nrho cov load, muaj kev cuam tshuam siab, thiab txoj kev tsis sib xws.
• Cov qauv kev teeb tsa muaj xws li 12.00R20 16PR engineering log tsheb nrog cov phab ntsa tuab tuab thiab ua kom muaj zog, haum rau ntau yam hnyav xws li pob zeb, av nkos, thiab kev tsim kho. Lub tsheb tau nruab nrog 12 lub log tsheb thiab lub log tsheb spare kom paub meej traction thiab tsav kev nyab xeeb nyob rau hauv tag nrho cov load.
Weichai Lub Zog Hluav Taws Xob - Kev tso tawm hluav taws xob txuas ntxiv nyob rau hauv qhov hnyav hnyav
• Lub tshuab hluav taws xob muaj lub Weichai 11.596L rau -lub tog raj kheej diesel cav (yeem), nrog rau kev hloov pauv loj, tsim nyog lub tog raj kheej, thiab cov zis hluav taws xob zoo heev thiab siab -kub tsis kam. Lub cav muaj peev xwm tso zis 380 horsepower (optional), nrog rau cov torque reserves, tswj lub zog ruaj khov thaum lub sij hawm hnyav -load pib, nce toj, thiab ntev - kev thauj mus los.
• Lub cav ua tau raws li Euro II/Euro III emission qauv, kom ntseeg tau tias kev sib xyaw ua haujlwm zoo thaum txhim kho roj yoog raws, ua rau nws tshwj xeeb tshaj yog siv rau ntau qhov chaw thiab nrog cov roj sib txawv txawv teb chaws.
• Lub tsheb ceev tshaj plaws tuaj yeem ncav cuag 90 km / h, ua tau raws li qhov xav tau ntawm qhov nruab nrab - thiab ntev - kev tuav cov khoom siv, kev thauj mus los slag, thiab kev pov tseg ntawm kuv.
Txhim khu kev qha gearbox matching txhim kho qhov chaw siv tsheb thauj mus los efficiency.
Nruab nrog 10JSD180 phau ntawv gearbox (optional), nws nta 10 pem hauv ntej gears + 2 thim rov qab gears, dav iav piv ntau, thiab ntshiab siab thiab qis ceev hloov logic, tso cai rau tus neeg tsav tsheb xaiv lub iav tsim nyog raws li kev thauj khoom, gradient, thiab txoj kev.
Hnyav-load pib gears muaj lub zog siab, thaum lub zog qis yog qhov tsim nyog rau cov xwm txheej xws li kev hla kev, chaw thau khoom, thiab qhov chaw nqaim; thaum lub zog siab muab kev lag luam zoo thiab kev ruaj ntseg hauv txoj kev loj hauv tebchaws thiab luv - kev thauj mus los deb. Tag nrho cov qauv kis tau tus mob yog paub tab thiab ruaj khov, tswj tus nqi qis qis txawm tias nyob rau hauv kev hloov pauv ntau zaus thiab qis - nrawm nrawm.
Rugged chassis qauv ua tau raws li qhov ntev - lub sij hawm siab - siv zog.
Sackman X3000 tshiab tsheb thauj khoom siv siab - lub zog steel hauv nws cov qauv ncej. Los ntawm kev txhawb nqa lub crossbeams thiab optimizing cov ntsiab lus kev ntxhov siab, tag nrho cov torsional thiab compressive lub zog ntawm lub tsheb tau zoo tuaj. Txawm tias thaum thauj khoom tag nrho thiab tsav tsheb ntawm txoj kev tsis sib xws, lub thav duab zoo txo qhov deformation.
Lub cev muaj zog ntawm tus kheej-unloading system thiab ruaj khov, cuam tshuam-cov khoom siv hydraulic tiv thaiv kom ua kom cov txheej txheem du thiab nrawm nrawm, ua rau nws tsim nyog rau siab -frequency dumping hauj lwm uas muaj cov slag, cov khoom sib xyaw, thiab cov khoom sib xyaw. Tag nrho cov qauv muab kev ntseeg siab dua rau kev ua haujlwm tsis tu ncua ib puag ncig, txo qis sijhawm thiab cov nqi kho.
Haum rau ntau yam Engineering thauj Scenarios
Tus Tshiab Shacman X3000 8x4 Pob Tseg Truck yog tsim rau:
* Kev tsim kho hauv nroog pov tseg
* Infrastructure thiab earthwork tej yaam num
* Kev thauj mus los thiab xuab zeb
* Kuv cov khoom tso tawm thiab luv - thauj mus los
* Siab- siv zog, ntau- ua haujlwm tsis tu ncua
Lub siab -load- cov kabmob platform, siab - lub zog chassis, thiab lub cav muaj zog ua kom ruaj khov ua haujlwm hauv txhua txoj haujlwm hnyav-.
Cov ntsiab lus
Tus Tshiab Shacman X3000 8x4 Pob Tseg Truck yog qhov siab -kev ua tau zoo ntawm tus kheej- cov khoom siv thauj khoom tsim los rau hnyav-cov haujlwm engineering, sib txuas cov peev txheej siab, kev tso tawm hluav taws xob txhim khu kev qha, lub chassis ruaj khov, thiab ruaj khov qag thiab lub log tsheb. Txawm hais tias nyob hauv nroog kev tsim kho lossis kev lag luam mining, tus qauv no muab kev txhawb nqa kev thauj mus los zoo thiab txhim khu kev qha, ua rau nws yog ib qho tseem ceeb uas yuav tsum tsis txhob hnyav -cov haujlwm ua haujlwm hauv cov haujlwm engineering. Tiv tauj peb tam sim no!
